9686S Series

I-Lock

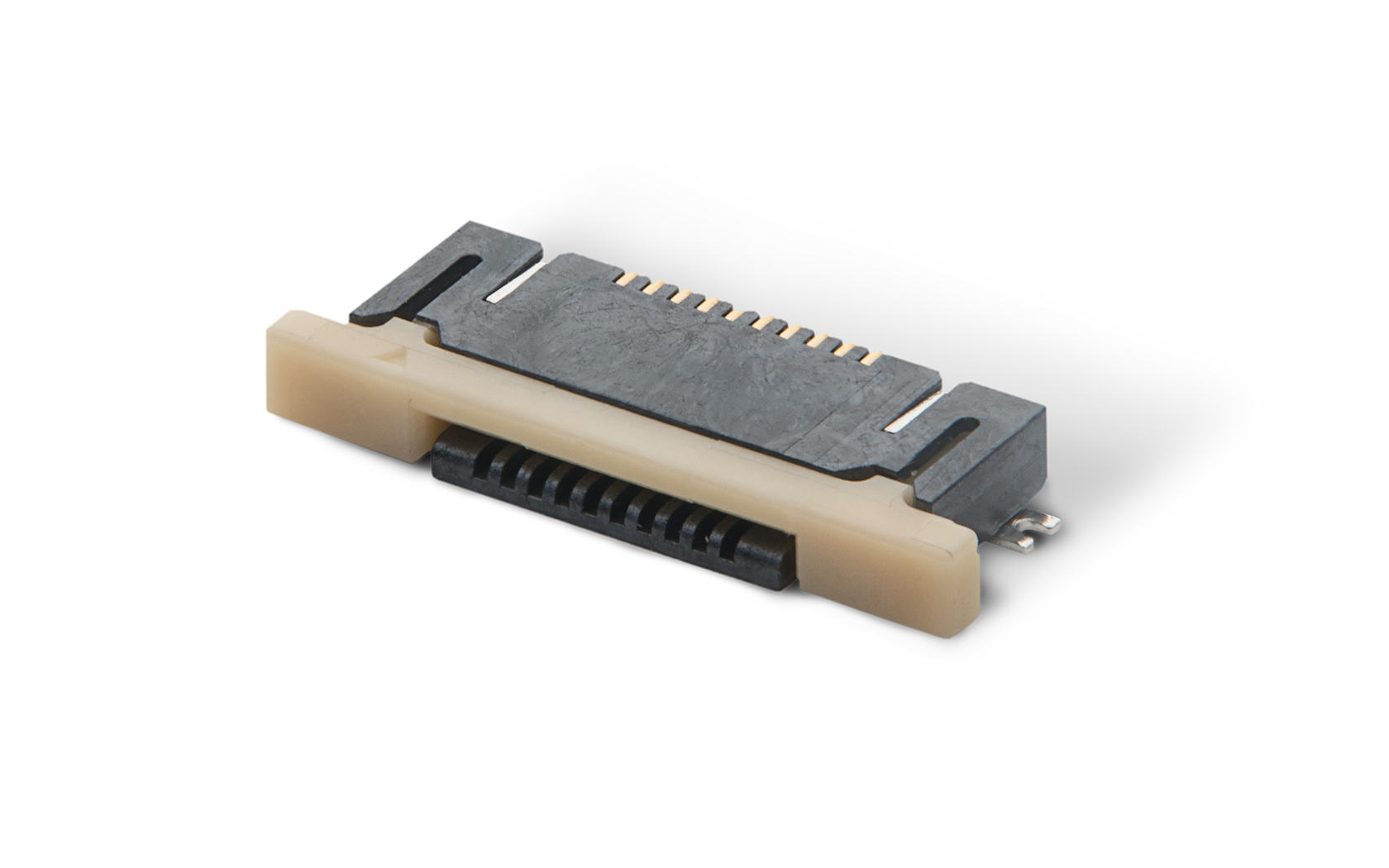

Iriso Electronics - Produkt FFC / FPC Connector 9686s Series

Magnit rem a aut libus adXimpore laborior sed moluptibus voluptate dolessint facit que diatemquam veles sequam atiuagnit rem a aut libus adXimpore laborior sed moluptibus voluptate do. Magnit rem a aut libus adXimpore laborior sed moluptibus voluptate dolessint facit qu

Produktinformation
CategoryFPC / FFC Connectors
Series9686S Series
Detailinformationen
Connecting TypeSocket
Connector Orientation
RightAngle
Pitch0.5 mm
Pin Counts
Plating Thickness0.1 μm Min.
Signal Transmission Speed
Width (Depth)4.9 mm
Rated Voltage (AC)50 V
Rated Current0.5 A
Impedance Matching
Operating Temperature Range (Max.)+105 ℃
ArraySingle Row
Halogen FreeNo
Boss LocatorNo
Wide Slider
LocksZIF/I-Lock
Packaging TypeEmboss
PCB Mounting MethodsSMT
Connector DirectionBottomContact
Solder Tail Pitch0.5 mm
Contact PlatingGold
Signal Spec
Length (Pitch Direction)
Height
Rated Voltage (DC)50 V
Withstand Voltage250 V (AC)
Contact Resistance50 mΩ Max.
Operating Temperature Range (Min.)-40 ℃
RoHS2Yes
2-Point ContactNo
Ground TerminalNo
Durability20
Card (FPC) Retention MechanismYes
Package Quantity3000
