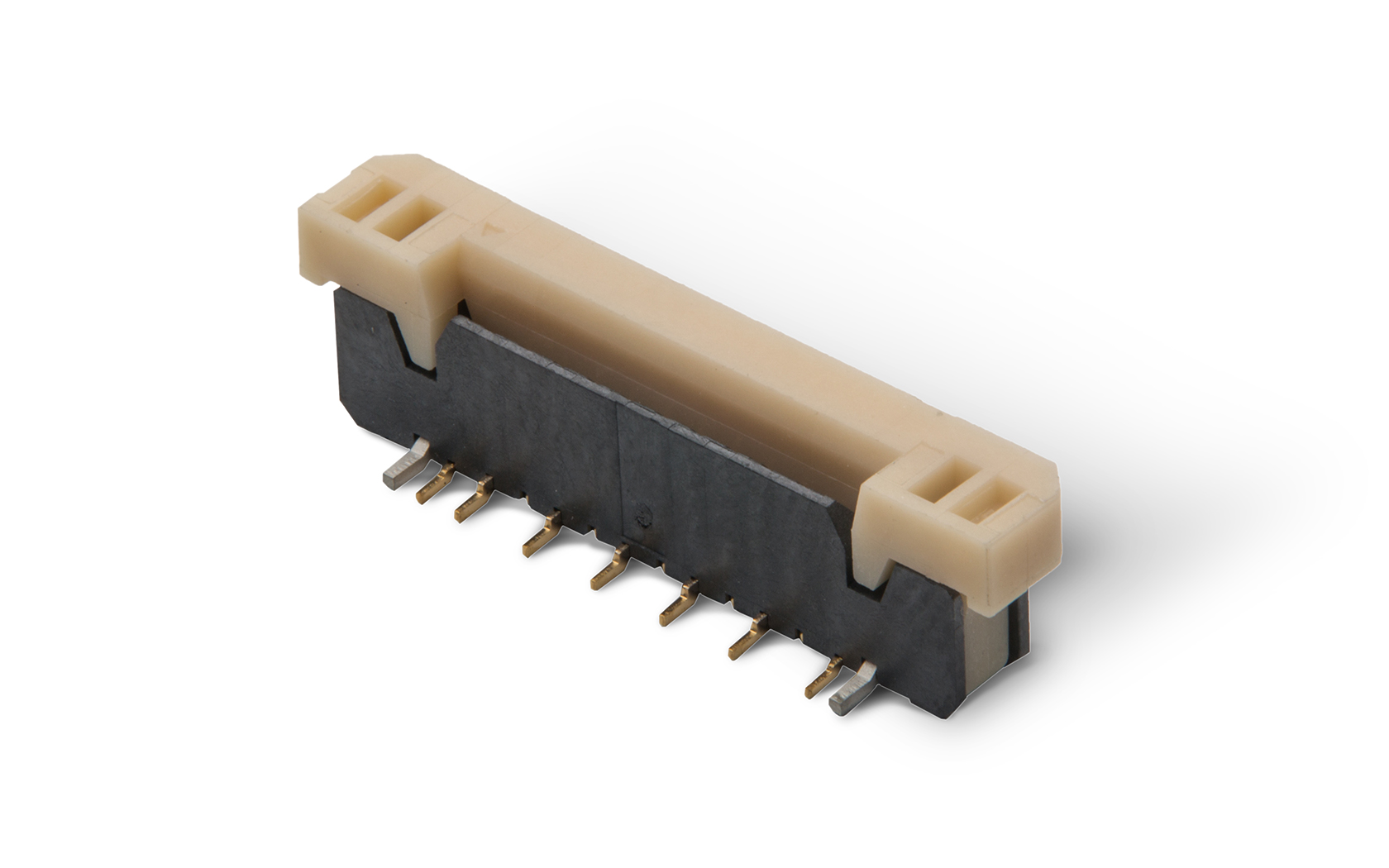

9665S Series
I-Lock
Magnit rem a aut libus adXimpore laborior sed moluptibus voluptate dolessint facit que diatemquam veles sequam atiuagnit rem a aut libus adXimpore laborior sed moluptibus voluptate do. Magnit rem a aut libus adXimpore laborior sed moluptibus voluptate dolessint facit qu
Produktinformation
Category | FPC / FFC Connectors |
Series | 9665S Series |
Detailinformationen
Connecting Type | Socket |
Connector Orientation | Vertical |
Pitch | 1 mm |
Pin Counts | |
Plating Thickness | 0.1 μm Min. |
Signal Transmission Speed | |
Width (Depth) | 2.5 mm |
Rated Voltage (AC) | 125 V |
Rated Current | 1 A |
Impedance Matching | |
Operating Temperature Range (Max.) | +105 ℃ |
Array | Staggered Arrangement |
Halogen Free | No |
Boss Locator | No |
Wide Slider | |
Locks | ZIF/I-Lock |
Packaging Type | Emboss |
PCB Mounting Methods | SMT |
Connector Direction | SingleContact |
Solder Tail Pitch | 1 mm |
Contact Plating | Gold |
Signal Spec | |
Length (Pitch Direction) | |
Height | |
Rated Voltage (DC) | 125 V |
Withstand Voltage | 250 V (AC) |
Contact Resistance | 30 mΩ Max. |
Operating Temperature Range (Min.) | -40 ℃ |
RoHS2 | Yes |
2-Point Contact | No |
Ground Terminal | No |
Durability | 20 |
Card (FPC) Retention Mechanism | Yes |
Package Quantity | 1000 |
