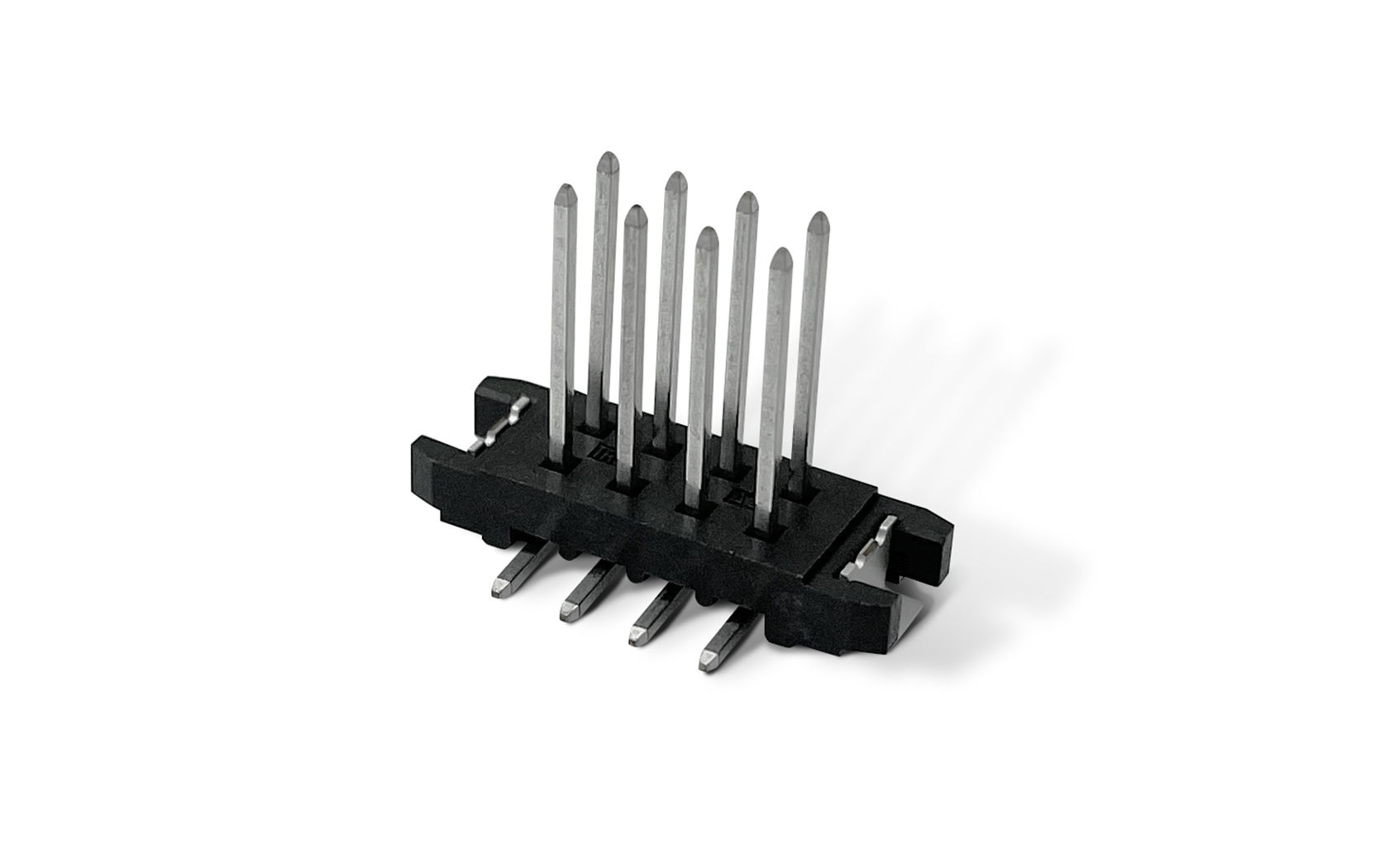

13014B Series
Magnit rem a aut libus adXimpore laborior sed moluptibus voluptate dolessint facit que diatemquam veles sequam atiuagnit rem a aut libus adXimpore laborior sed moluptibus voluptate do. Magnit rem a aut libus adXimpore laborior sed moluptibus voluptate dolessint facit qu
Produktinformation
| Category | Pin Header Connectors |
| Series | 13014B Series |
Detailinformationen
| Connecting Type | Plug |
| Connector Orientation | Vertical |
| Solder Tail Pitch | 2.54 mm |
| Contact Plating | Tin |
| Signal Spec | |
| Length (Pitch Direction) | |
| Height | |
| Rated Voltage (DC) | 250 V |
| Withstand Voltage | 500 V (AC) |
| Contact Resistance | |
| Operating Temperature Range (Min.) | -40 ℃ |
| RoHS2 | Yes |
| 2-Point Contact | |
| Cap | No |
| Top Pin Length | 7.3 |
| Packaging Type | Emboss |
| PCB Mounting Methods | SMT |
| Pitch | 2.54 mm |
| Pitch Counts | |
| Plating Thickness | 2 μm Min. |
| Signal Transmission Speed | |
| Width (Depth) | 6 mm |
| Rated Voltage (AC) | 250 V |
| Rated Current | 3 A |
| Impedance Matching | |
| Operating Temperature Range (Max.) | +105 ℃ |
| Array | Dual Row |
| Halogen Free | No |
| Boss Locator | Yes |
| Card (FPC) Retention Mechanism | |
| Bottom Pin Length | 2.5 |
| Package Quantity | 300 |
