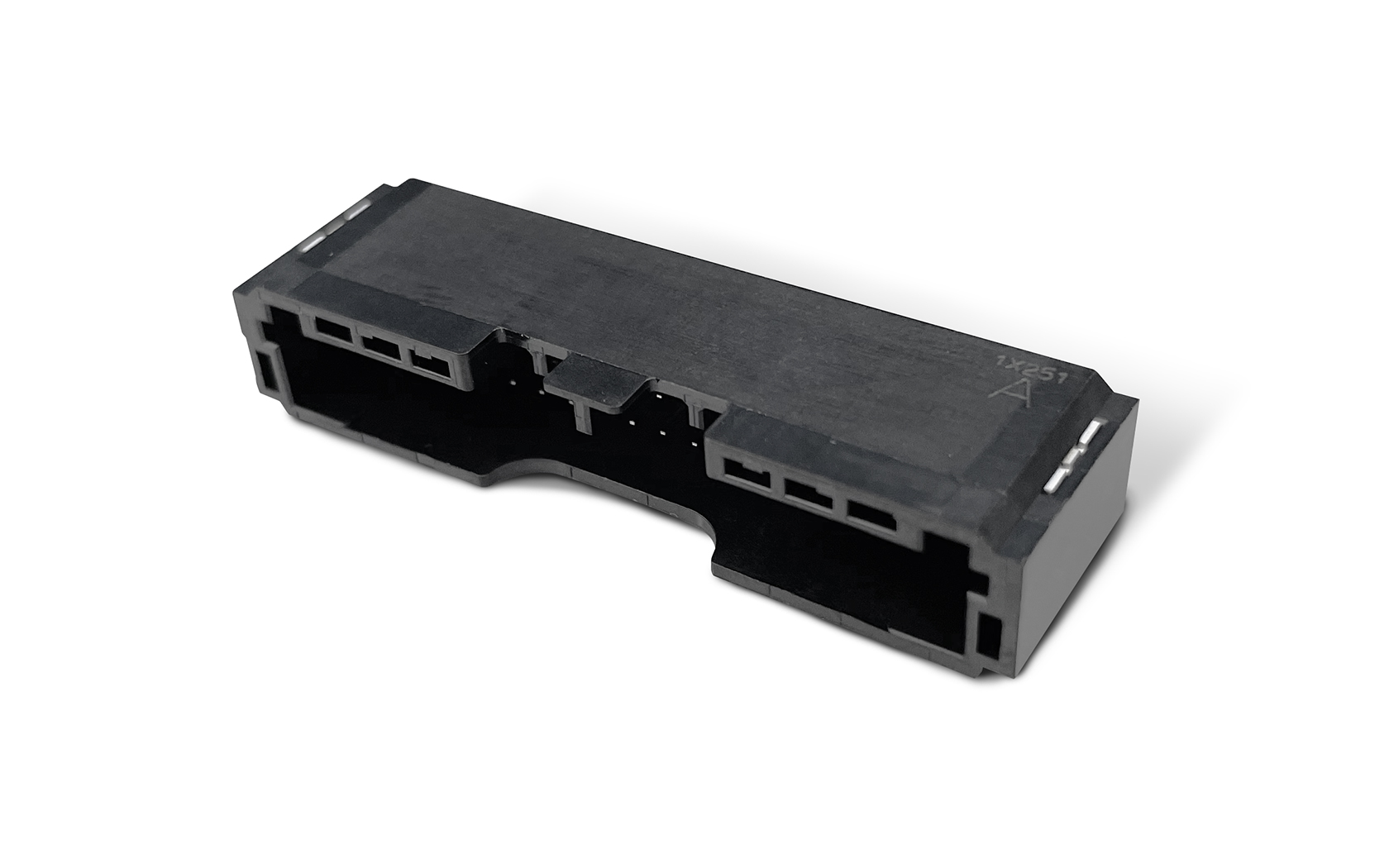

13065B Series
Magnit rem a aut libus adXimpore laborior sed moluptibus voluptate dolessint facit que diatemquam veles sequam atiuagnit rem a aut libus adXimpore laborior sed moluptibus voluptate do. Magnit rem a aut libus adXimpore laborior sed moluptibus voluptate dolessint facit qu
Product information
| Category | I / O Connectors |
| Series | 13065B Series |
Detailed information
| Connecting Type | Plug |
| Connector Orientation | RightAngle |
| Solder Tail Pitch | 1 mm |
| Contact Plating | Tin |
| Signal Spec | |
| Length (Pitch Direction) | 47.6 mm |
| Height | 9.3 mm |
| Rated Voltage (DC) | 50 V |
| Withstand Voltage | 1000 V（AC) |
| Contact Resistance | |
| Operating Temperature Range (Min.) | -40 ℃ |
| RoHS2 | Yes |
| 2-Point Contact | No |
| Ground Terminal | No |
| Card (FPC) Retention Mechanism | |
| Package Quantity | 300 |
| PCB Mounting Methods | SMT |
| Pitch | 2 mm |
| Pin Counts | |
| Plating Thickness | 0.5 μm Min. |
| Signal Transmission Speed | |
| Width (Depth) | 18.2 mm |
| Rated Voltage (DC) | 50 V |
| Rated Current | 3 A |
| Impedance Matching | |
| Operating Temperature Range (Max.) | +125 ℃ |
| Array | Dual Row |
| Halogen Free | No |
| Boss Locator | No |
| Durability | |
| Packaging Type | Emboss |
